POA-LMP130 lamp replacement and time

Lamp Replacement

Follow these steps to replace the POA-LMP130 lamp.

Check the number of lamp to be replaced on the Lamp

Status Display

Turn off the projector, press the Main On/Off Switch to Off

and unplug the AC power cord from the AC outlet. Let the

projector cool for at least 45 minutes.

Loosen a screw on the Lamp Cover. Slide and open the

Lamp Cover. (See the right figure.)

Loosen two screws and pull out the Lamp to be replaced

by grasping handle.

Replace the POA-LMP130 Lamp with a new one and tighten two

screws. Make sure the Lamp is set properly

Put the Lamp Cover back and tighten a screw.

● Lamp lifetime may differ from lamp to lamp and according to the environment of use. There is no

guarantee of the same lifetime for each lamp. Some lamps may fail or terminate their lifetime in a

shorter period of time than other similar lamps.

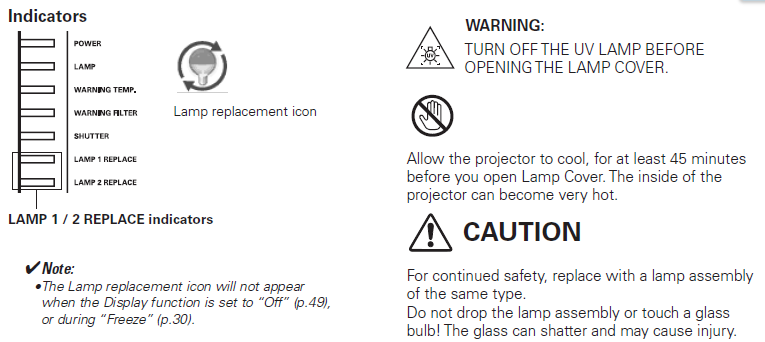

● If the projector indicates that the POA-LMP130 lamp should be replaced, i.e., if the LAMP 1/2 REPLACE indicators

light up, replace the lamp with a new one IMMEDIATELY after the projector has cooled down. (Follow

carefully the instructions in the Lamp Replacement section of this manual.) Continuous use of the lamp

with the LAMP 1/2 REPLACE indicators lighted may increase the risk of lamp explosion.

● Lamp may explode as a result of vibration, shock or degradation as a result of hours of use as its

lifetime draws to an end. Risk of explosion may differ according to the environment or conditions in

which the projector and lamp are being used.

IF A LAMP EXPLODES, THE FOLLOWING SAFETY PRECAUTIONS SHOULD BE TAKEN.

If a lamp explodes, disconnect the projector’s AC plug from the AC outlet immediately. Contact an

authorized service station for a checkup of the unit and replacement of the lamp. Additionally, check

carefully to ensure that there are no broken shards or pieces of glass around the projector or coming out

from the cooling air circulation holes. Any broken shards found should be cleaned up carefully. No one

should check the inside of the projector except those who are authorized trained technicians and who

are familiar with projector service. Inappropriate attempts to service the unit by anyone, especially those

who are not appropriately trained to do so, may result in an accident or injury caused by pieces of broken

glass.
