AH-55001 lamp replacement and time

Replacing the AH-55001 Lamp

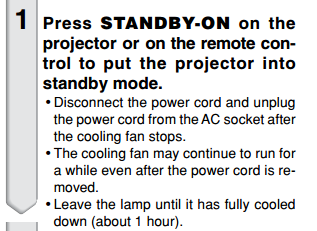

•Do not remove the lamp unit from the projector right after use. The lamp will be very hot and may cause burn

or injury.

•Wait at least one hour after the power cord is disconnected to allow the surface of the lamp unit to fully cool

before removing the AH-55001 lamp unit.

•Do not remove the lamp unit from the projector right after use. The lamp and parts

around the lamp will be very hot and may

cause burn or injury.

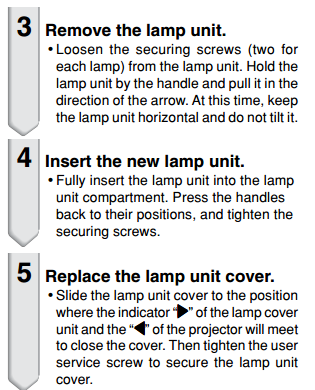

•Make sure the AH-55001 lamp unit is removed using the handle. Make sure the glass surface of

the lamp unit or the inside of the projector are not touched.

•To avoid injury to yourself and damage to the lamp, make sure you carefully follow

the steps below.

•Do not loosen other screws except for the lamp unit cover and lamp unit.
