AN-A10LP lamp replacement and time

Replacing the AN-A10LP Lamp

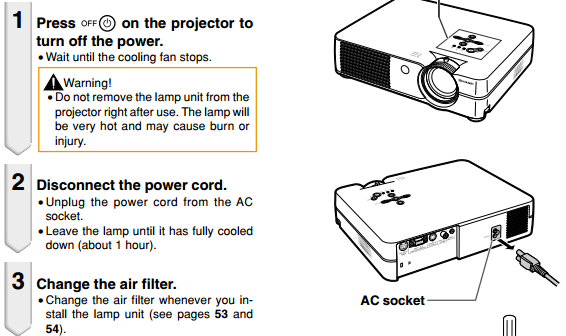

Caution

•Do not remove the lamp unit immediately after operation of the projector. The lamp will be hot and touching

it can lead to burn or injury.

•Wait at least one hour after the power cord is disconnected to allow the surface of the lamp unit to fully cool

before removing the AN-A10LP lamp unit

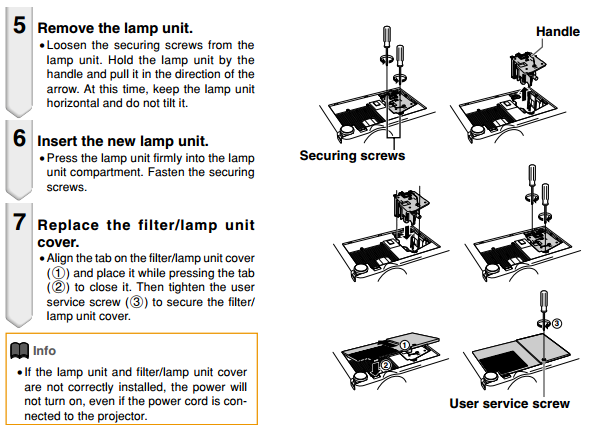

Removing and Installing the Lamp Unit

Be sure to remove the lamp unit using the

handle. Be sure not to touch the glass surface of the lamp unit or the inside of the

projector.

•To avoid injury to yourself and damage to

the AN-A10LP lamp, be sure to carefully follow the

steps below.

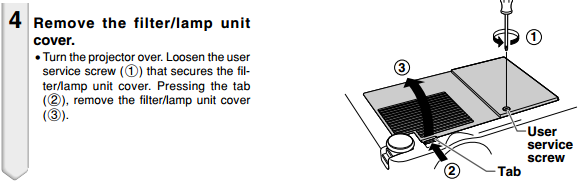

•Do not loosen other screws except for the

filter/lamp unit cover and lamp unit.

•Please refer to the installation manual included with the lamp unit.
