AN-B10LP lamp usage

Caution Concerning Lamp Replacement

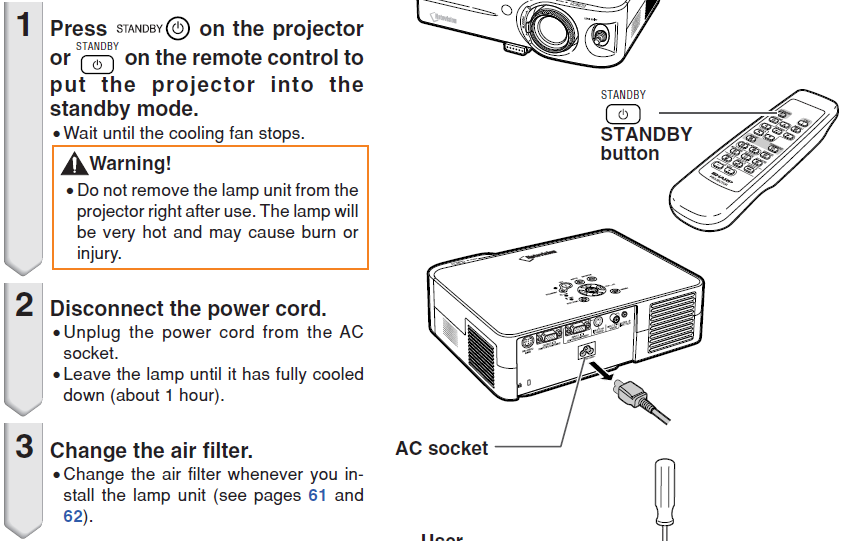

BEFORE REMOVING THE SCREW, DISCONNECT POWER

CORD. HOT SURFACE INSIDE. ALLOW 1 HOUR TO COOL

BEFORE REPLACING THE LAMP. REPLACE WITH SAME

SHARP LAMP UNIT TYPE BQC-PGB10S//1 ONLY.

UV RADIATION : CAN CAUSE EYE DAMAGE. TURN OFF

LAMP BEFORE SERVICING.

HIGH PRESSURE LAMP : RISK OF EXPLOSION. POTENTIAL

HAZARD OF GLASS PARTICLES IF LAMP HAS RUPTURED.

HANDLE WITH CARE. SEE OPERATION MANUAL.

DEBRANCHER LE CORDON D’ALIMENTATION AVANT DE

RETIRER LA VIS. L’INTERIEUR DU BOITIER ETANT

EXTREMEMENT CHAUD, ATTENDRE 1 HEURE AVANT DE

PROCEDER AU REMPLACEMENT DE LA LAMPE.

NE REMPLACER QUE PAR UNE LAMPE SHARP DE TYPE

BQC-PGB10S//1.

RAYONS ULTRAVIOLETS : PEUVENT ENDOMMAGER LES

YEUX. ETEINDRE LA LAMPE AVANT DE PROCEDER

A L’ENTRETIEN.

LAMPE A HAUTE PRESSION : RISQUE D’EXPLOSION.

DANGER POTENTIEL DE PARTICULES DE VERRE EN CAS

D’ECLATEMENT DE LA LAMPE. A MANIPULER AVEC

PRECAUTION, SE REPORTER AU MODE D’EMPLOI.

Note

• The lamp indicator illuminates, indicating

the status of the AN-B10LP lamp.

Green: The lamp is ready.

Blinking in green: The lamp is warming up.

Red: The lamp should be replaced.

• If the projector is put into the standby

mode and immediately turned on

again, the lamp indicator may take

some time to illuminate.

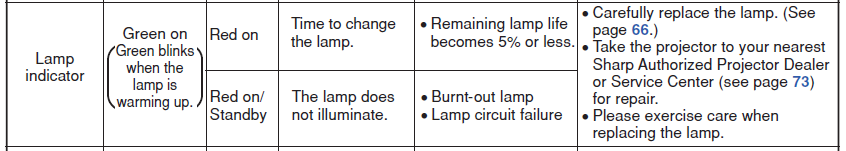

Maintenance Indicators

Info

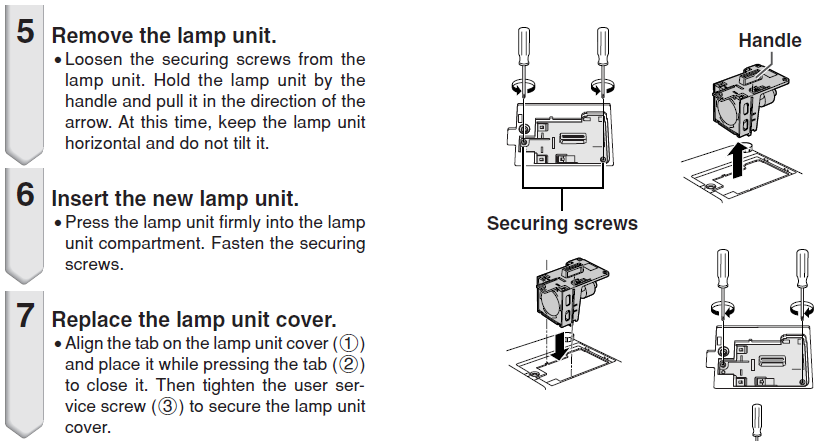

• Be sure to remove the lamp unit using the

handle. Be sure not to touch the glass surface

of the lamp unit or the inside of the

projector.

• To avoid injury to yourself and damage to

the lamp, be sure to carefully follow the

steps below.

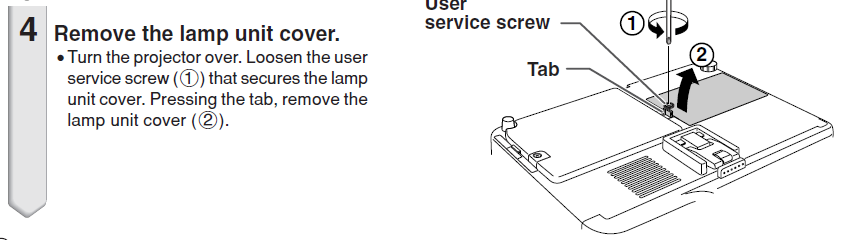

• Do not loosen other screws except for the

lamp unit cover and lamp unit.

• Please refer to the installation manual included

with the AN-B10LP lamp unit.
