AN-C55LP lamp usage

Note

• The lamp indicator illuminates, indicating

the status of the AN-C55LP lamp.

Green: The lamp is on.

Green blinking: The lamp is

warming up or

shutting down.

Red: The AN-C55LP lamp should be replaced.

• If the projector is put into the standby

mode and immediately turned on

again, the lamp indicator may take

time to illuminate.

• When controlling the projector using

RS-232C commands from a computer,

wait for at least 40 seconds

after the power has been turned on,

and then transmit the commands.

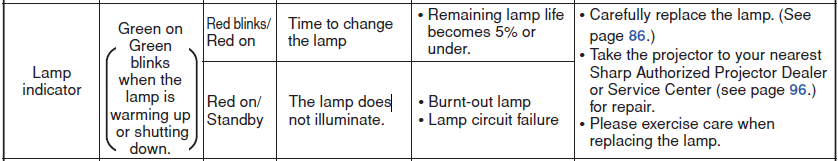

Maintenance indicator

Regarding the lamp

■ It is recommended that the lamp (optional: AN-C55LP) be replaced when the remaining lamp life

becomes 5% or less, or when you notice a significant deterioration in the picture and color quality.

The lamp life (percentage) can be checked with the on-screen display.

■ Purchase a replacement lamp unit of type AN-C55LP from your place of purchase, nearest Sharp

Authorized Projector Dealer or Service Center.

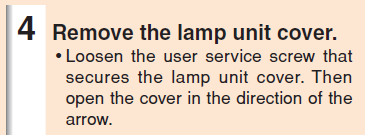

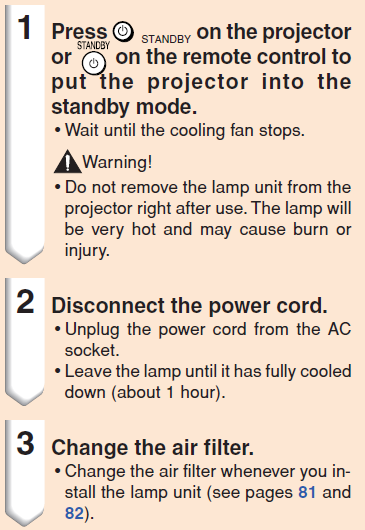

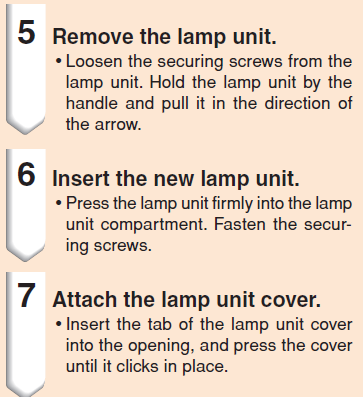

Replacing the Lamp

• Do not remove the lamp unit immediately after operation of the projector. The lamp will be hot and touching

it can lead to burn or injury.

•Wait at least one hour after the power cord is disconnected to allow the surface of the lamp unit to fully cool

before removing the AN-C55LP lamp unit.
