AN-D350LP lamp usage

Caution

Do not remove the lamp unit from the projector right after use. The lamp will be very hot and may

cause burns or injury.

Wait at least one hour after the power cord is disconnected to allow the surface of the lamp unit to

fully cool before removing the AN-D350LP lamp unit.

Do not touch the glass surface of the lamp unit or the inside of the projector.

Do not loosen other screws except for the lamp unit cover and lamp unit.

Make sure to reset the lamp timer only when replacing the lamp. If you reset the lamp timer and

continue to use the same lamp, this may cause the lamp to become damaged or explode.

Note

About the Lamp Indicator

The lamp indicator illuminates to indicate the

status of the AN-D350LP lamp.

Green: The lamp is on.

Blinking in green: The lamp is warming up.

Red: The lamp is shut down

abnormally or the AN-D350LP lamp should be

replaced.

When switching on the projector, a slight

fl ickering of the image may be experienced

within the fi rst minute after the lamp has been

illuminated. This is normal operation as the

lamp's control circuitry is stabilising the lamp

output characteristics. It should not be

regarded as faulty operation.

If the projector is put into Standby mode and

immediately turned on again, the lamp may

take some time to start projection.

Info

If the temperature warning indicator illuminates, and the projector enters Standby mode, follow the

possible solutions above and then wait until the projector has cooled down completely before

plugging in the power cord and turning the power back on. (At least 10 minutes.)

If the power is turned off for a brief moment due to power outage or some other cause while using

the projector, and the power supply recovers immediately after that, the lamp indicator will illuminate

in red and the lamp may not be lit. In this case, unplug the power cord from the AC outlet, replace

the power cord in the AC outlet and then turn the power on again.

The cooling fan keeps the internal temperature of the projector constant and this function is

controlled automatically. The sound of the cooling fan may change during operation because the fan

speed may change and this is not a malfunction.

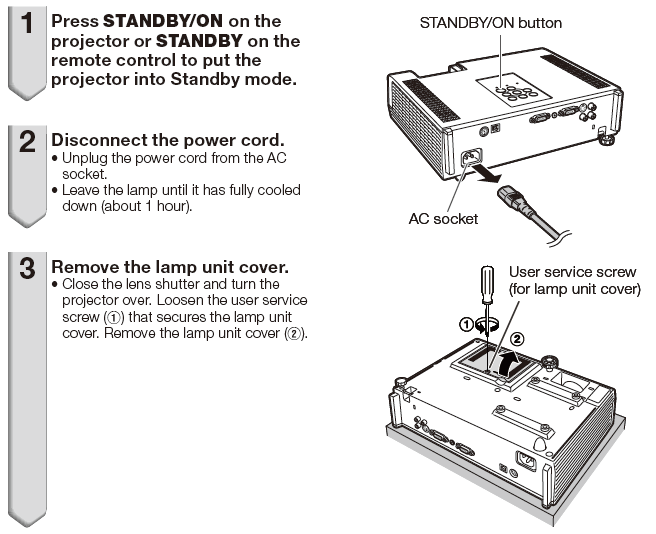

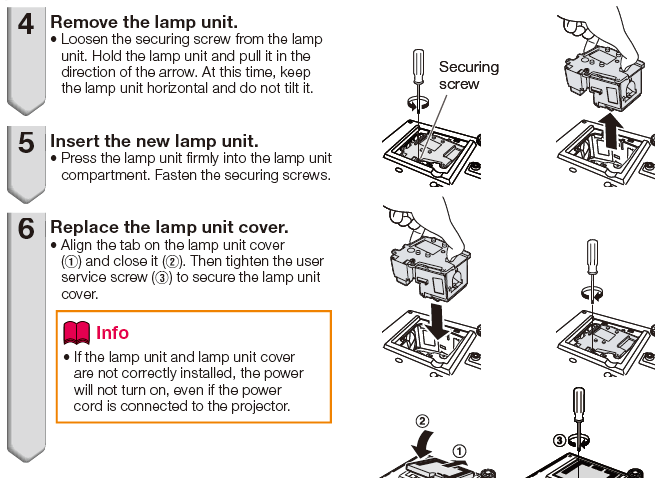

Replacing the lamp
