BL-FP200B  lamp replacement and time

Replacing the BL-FP200B Lamp

The projector displays a warning message “Lamp is approaching

the end of its useful life in full power operation. Replacement Suggested!” When you see this message, please contact your local

reseller or service center.

Make sure the projector has cooled down for at least 30 minutes

before changing the lamp

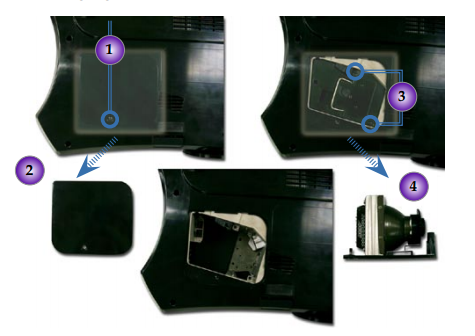

Lamp Replacing Procedure:

1. Turn off the power to the BL-FP200B lamp by pressing the power button.

2. Allow the projector to cool down at least 30 minutes.

3.  Disconnect the power cord.

4. Use screwdriver to remove the screw from the cover. 

5. Remove the cover. 

6. Unscrew 2 screws from the lamp module. 

 7. Pull out the lamp module.

Lamp Hour

Displays the cumulative lamp operating time.

Lamp Reset

 Reset the BL-FP200B lamp setting only when the new lamp is replaced.

Lamp Reminding

Choose this function to show or to hide the warning message when

the changing lamp message is displayed. The message will show

up 30 hours before end of life
