DT00201 lamp replacement and time

Light source DT00201 lamp has a service life.

The picture will become dark or color will be poor when the lamp is used for a long time.

If usage of lamp is continued in such cases, it could cause a malfunction. Replace lamp with new one.

As reference for replacement time, indicator will operate or message will be displayed when the power is

turned on, as shown on page 30~31. In these cases the lamp should be replaced. Consult your dealer.

Also LAMP indicator will light when the lamp becomes too hot. Turn off the power and let the

projector cool for 45 minutes. Turn on. If LAMP indicator still lights up red, contact your

dealer.

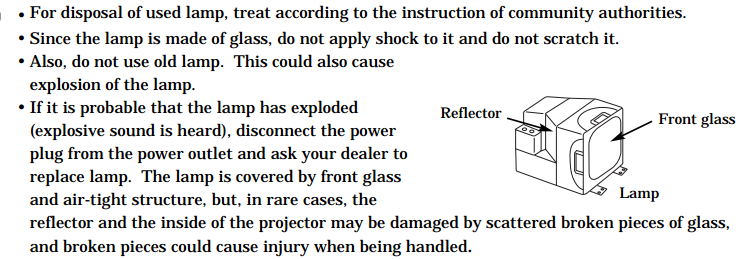

How to replace DT00201 lamp

When replacing lamp, turn off and remove AC cord, wait 45 minutes to let lamp cool.

High-pressure lamp when hot, may explode if improperly handled.

1   Turn the main power switch off and disconnect the power

plug from the power outlet.

2   Remove the DT00201 lamp cover.

·If lamp is hot at this time, this could cause burn. Wait

for about 45 minutes until lamp is cooled down.

·Loosen a screw and remove the cover.

3   Loosen two screws and pull the handle to remove the lamp.

4   Replace the lamp with new one and fix it using the same two screws.

5    Install the lamp cover and fix it using screws

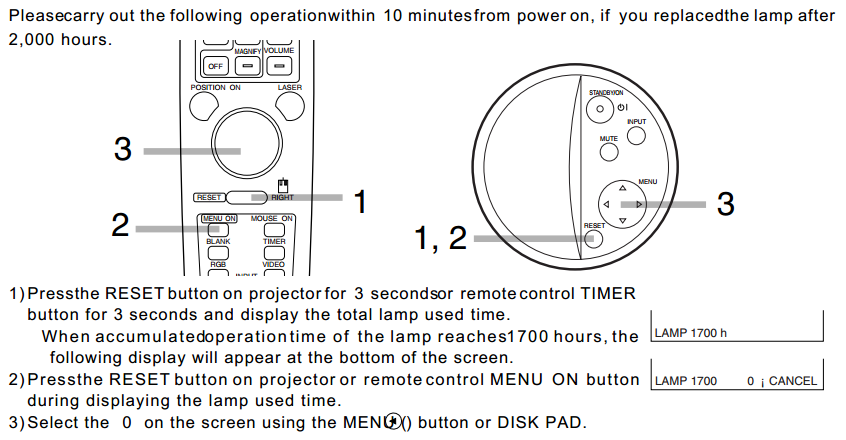

Reset the lamp time
