ET-LAD40 lamp replacement and lifetime

Replacing the ET-LAD40 lamp unit

WARNING!

When replacing the ET-LAD40 lamp, allow it to cool for at least one hour before handling it.

•The lamp cover gets very hot, and touching it can cause burns.

Make sure that two lamp units are always installed

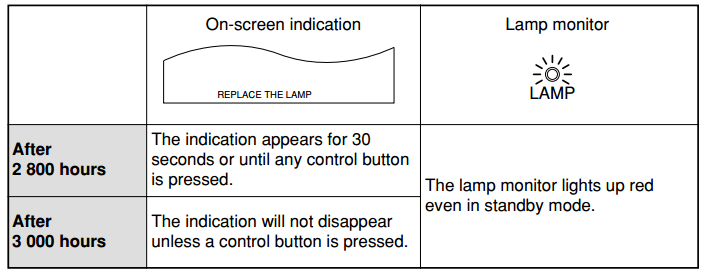

The lamp units are consumable parts. The ET-LAD40 lamp brightness decreases gradually as the cumulative operating

time increases, so periodic replacement is necessary. The replacement guideline is 3 000 hours, although the

lamp may become dead (will not light) before 3 000 hours is reached depending on the characteristics of

individual lamps and other factors such as the operating conditions and the installation environment. Therefore,

it is recommended for the user to keep a spare ET-LAD40 lamp unit.

The risk of the lamp bursting increases after 3 000 hours of operation, so the lamp unit turns off automatically.

1    Remove the power plug and confirm that the surroundings of the lamp unit have cooled off.

2    Remove the screw securing the lamp unit cover, and then slide the lamp unit cover

a little toward the left, and remove it.

3   Remove the two screws securing the fan unit.

4   Open the fan unit as shown in the figure

5   Remove the screws securing the lamp units (two for each unit), take hold of

the handles, and remove the lamp units.

6   Install the new lamp unit

7   Use a Phillips screwdriver to securely tighten the 2 lamp unit fixing screws

(two for each unit)

8    Secure the two screws for securing the fan unit tightly.

9   Slide the cover a little toward the right, and secure it using the screw for

securing the lamp unit cover tightly.
