ET-LAD60A/ ET-LAD55W projector replacement lamp tips

NOTE:

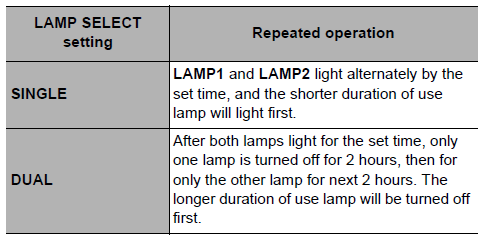

• If, in the SINGLE, LAMP1 or LAMP2 mode, one ET-LAD60A lamp remains

off or the currently active lamp exceeds 2 000*1 hours of

cumulative operating time (when HIGH is selected as the

LAMP POWER setting*2), the other lamp will light. If, in the

DUAL mode, one lamp remains off or the currently active lamp

exceeds 2 000*1 hours of cumulative operating time (when

HIGH is selected as the LAMP POWER setting*2), the other

lamp alone will light. However, if both lamps remain off or the

2 000*1 hours of cumulative operating time (when HIGH is

selected as the LAMP POWER setting*2) are exceeded, the

projector will enter the standby mode.

• The colours of the items indicate the status.

Green: Current setting

Yellow: Current setting (when a lamp fails or fails to light)

Red: Lamp that has failed to light

White: Any other status.

• If the projector is repeatedly used for short periods of time, the

lamps will need to be replaced more frequently.

*1. 3 000 hours for PT-D5000 only.

*2. Not available for PT-D5000.

LAMP RELAY

If using the projector for a continuous period of 24 hours or

more, this setting can be used to automatically switch the

lamps that are turned on in order to reduce the lamp

deterioration that can occur as a result of continuous use.

LAMP POWER

(Not available for PT-D5000)

The luminance of the projection ET-LAD60A lamp can be changed

depending on user’s needs or the viewing conditions.

NOTE:

• When set to LOW, it is possible to reduce power consumption,

reduce operating noise and extend lamp service life.
