POA-LMP101 lamp replacement

When the projection lamp of this projector reaches its end of life, the LAMP REPLACE indicator lights yellow. If

this indicator lights yellow, replace the projection lamp with a new one promptly.

Allow the projector to cool for at least 45 minutes before you open the lamp cover. The inside of the

projector can become very hot.

For continued safety, replace with a lamp assembly of the same type.

Do not drop the lamp assembly or touch a glass bulb! The glass can shatter and may cause injury.

Follow these steps to replace lamp assembly:

1.Turn off the projector and unplug the AC power cord.

Allow the projector to cool for at least 45 minutes.

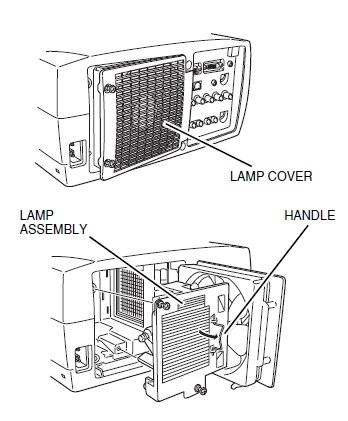

2.Loosen the two (2) screws with a screwdriver and open the POA-LMP101 lamp cover

3. Loosen the two (2) screws with a screwdriver and pull out the POA-LMP101 lamp assembly by using the built in handle.

4.Replace the lamp assembly with a new one and tighten the two (2) screws. Make sure that the lamp assembly is

set properly. Put back the lamp cover and tighten the two (2) screws.

5.Connect the AC power cord to the projector and turn on the projector.

6. Reset the Lamp replacement counter (refer to”LAMP REPLACE COUNTER” on the next page).

NOTE:

• Do not reset the Lamp replacement counter when the projection lamp is

not replaced.
