POA-LMP90 lamp replacement

When the life of the projection lamp of this projector draws

to an end, the LAMP REPLACE indicator emits a yellow

light. If this indicator lights yellow, replace the lamp with a

new one promptly.

1. Follow these steps to replace the lamp

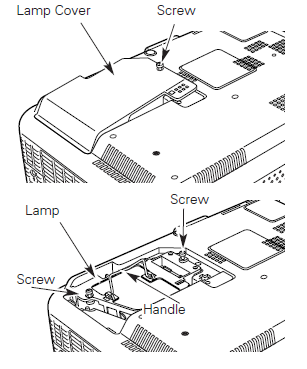

2. Remove the screw with a screwdriver, and remove the lamp cover.

3. Remove 2 screws of the lamp with a screwdriver and pull out the lamp by grasping the handle.

4. Replace the lamp with a new one and tighten the 2 screws back into position. Make sure that the lamp is

   set properly. Replace the lamp cover and tighten the screw.

5. Connect the AC power cord to the projector and turn on the projector.

6. Reset the lamp replacement counter.
