replacing SP-LAMP-019 projector lamp

Replacing the projection lamp

1 Turn off the projector and unplug the power cable.

2 Wait 60 minutes to allow the projector to cool thoroughly.

3 Turn the projector upside down and remove the lamp door by placing a

flat-blade screwdriver into the space between the SP-LAMP-019 lamp door and the

projector and gently prying the door off.

4 Loosen the captive screw on the lamp module.

5 Detach the SP-LAMP-019 lamp connector from the projector by depressing the locking

tab on the connector and lightly pulling it free.

6 Carefully remove the lamp module by grasping and lifting the metal

bail wire. Dispose of the lamp in an environmentally proper manner.

7 Install the new lamp module, making sure that it is properly seated. Be

careful not to touch the interior components of the projector.

8 Snap the bail wire back into its flat position against the lamp module.

9 Re-attach the lamp connector to the projector. The locking tab should

engage when the connector is fully plugged in.

10 Tighten the screw on the lamp module.

11 Replace the lamp door.

12 Plug in the power cable then press the Power button to turn the projector

back on, then reset the lamp hour timer.

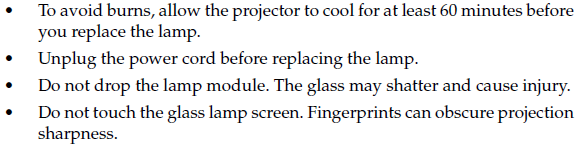

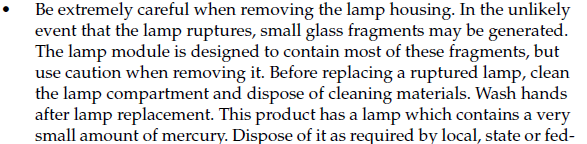

WARNINGS:

Resetting the lamp timer

If the lamp timer has reached the maximum number of hours for the projector

lamp, the LED on the projector’s keypad will show a lamp error (see

“LED behavior and meaning” on page 16). To reset the lamp timer, press the

decrease volume button on the keypad and the increase volume button

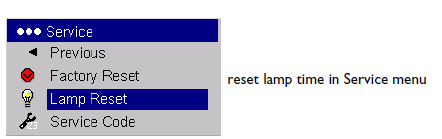

simultaneously for 10 seconds. You can also navigate to the Settings>Service

menu and select Lamp Reset to reset the lamp timer.
