replacing SP.86S01GC01 projector lamp

Replacing the SP.86S01GC01 lamp

Lamp Changing Procedure:

1. Switch off the power to the projector by pressing the Power button.

2. Allow the projector to cool down at least 30 minutes.

3. Disconnect the power cord.

4. Use a screwdriver to remove the screw from the cover. 

5. Push up and remove the cover. 

6. Remove the 2 screws from the lamp module. 

7. Pull out the SP.86S01GC01 lamp module. 

To replace the lamp module, reverse the previous steps.

Precautions

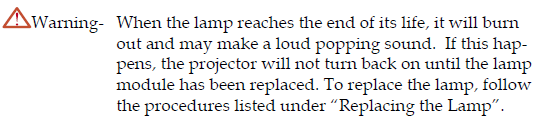

Warning Indicator

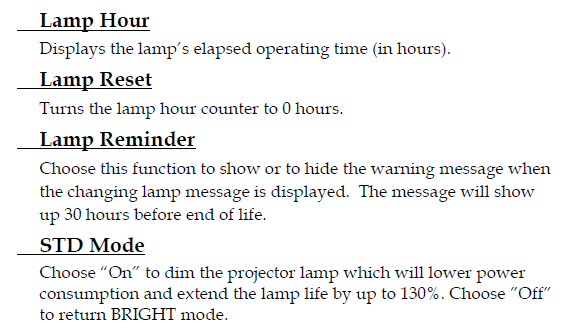

Lamp Setting
