SP.88N01GC01 projector lamp replacement and precautions

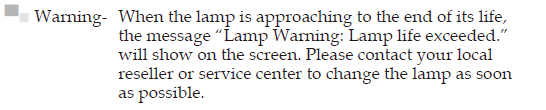

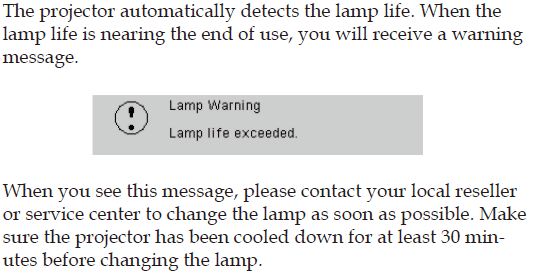

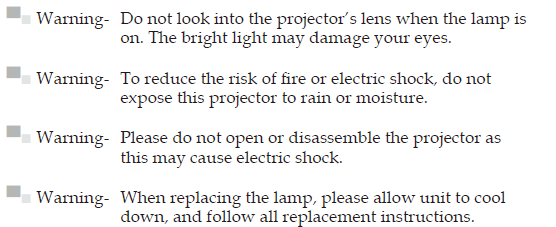

Precuations

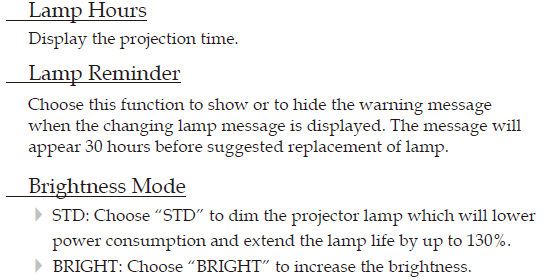

Options lamp settings

Replacing the lamp

Lamp Replacement Procedure:

1. Switch off the power to the projector by pressing the “ ” button.

2. Allow the projector to cool down for at least 30 minutes.

3. Disconnect the power cord.

4. Use a screwdriver to unscrew the 2 screws from the cover. 

5. Push up and remove the cover. 

6. Use a screwdriver to unscrew the 2 screws from the lamp module. 

7. Pull up the SP.88N01GC01 lamp handle carefully. 

8. Remove the lamp module. 

To replace the SP.88N01GC01 lamp module, reverse the previous steps.

9. Turn on the projector and use “Lamp Reset” after the lamp module is

replaced.

Lamp Reset: (i) Press “Menu”  (ii) Select “Options”  (iii) Select

“Lamp settings”  (iv) Select “Lamp reset  (v) Select “Yes”.
