TLPL79 projector lamp replacement and trouble indications

Notes

• The information displayed is not refreshed even if it changes. To refresh the information, turn

off the information display, then turn it back on.

• The information display turns off if any other operation is performed.

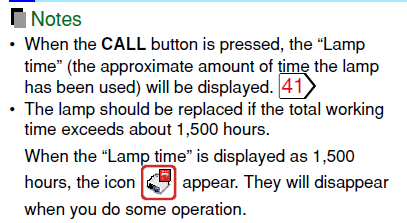

• The “Lamp time” shows an approximate time for lamp replacement. (It should not be used as a

lamp warranty time counter.) If the time indicated here nears 1500 hours, contact your store of

purchase about obtaining a replacement lamp (TLPL79, sold separately).

• The “Lamp time” can be reset when the lamp is replaced.

• The “Version” is the version of the control program used in the projector and is used for

servicing, etc.

Trouble indications

The TLPL79 lamp turns off or does not light up.

→ The projector will return to the standby mode in about 2 minutes.

If the projector does not operate normally when the power is switched on again,

the lamp is at the end of its life duration or the unit has a fault.

• Lamp's life duration is over, replace the lamp with a new one.

• Unplug the power cord and call the dealer.

• If abnormality occurs while operating, unplug the power cord.

• When reinserting the power cord before the lamp has cooled, please wait until the lamp has cooled sufficiently

before use. When the lamp is at a high temperature, it may not light and the life duration will be shortened.

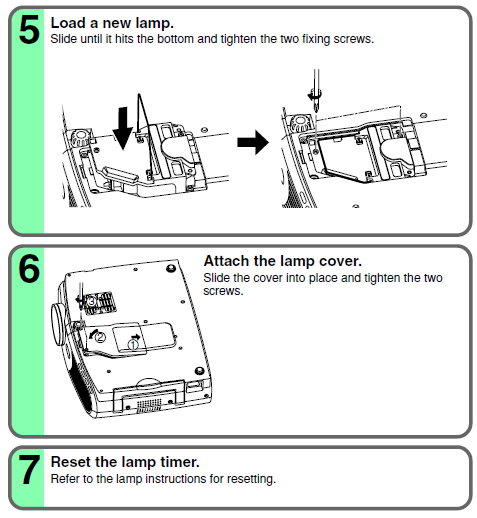

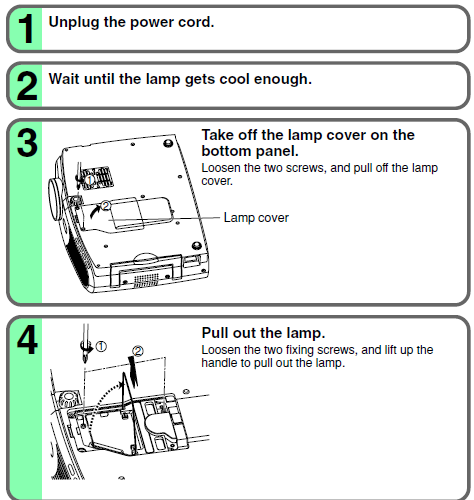

Lamp replacement

  • Attach the lamp cover firmly after replacing the

    lamp. If it is not set correctly, the power will not

    turn on.

  • Use a new TLPL79 lamp when replacing it.

  • Dispose of the exhausted lamp as toxic waste.

CAUTION

• If you use the projector mounted on the ceiling,

ask the dealer to carry out the maintenance

such as cleaning or replacement of the lamp.

• When replacing, always use lamp “TLPL79”

(sold separately). For details, refer to the lamp

instruction.
