TLPLB2 projector lamp replacement

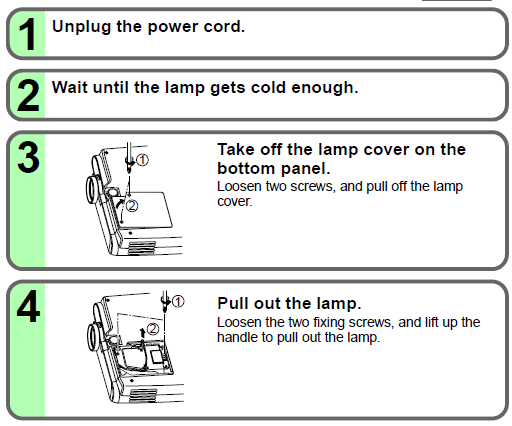

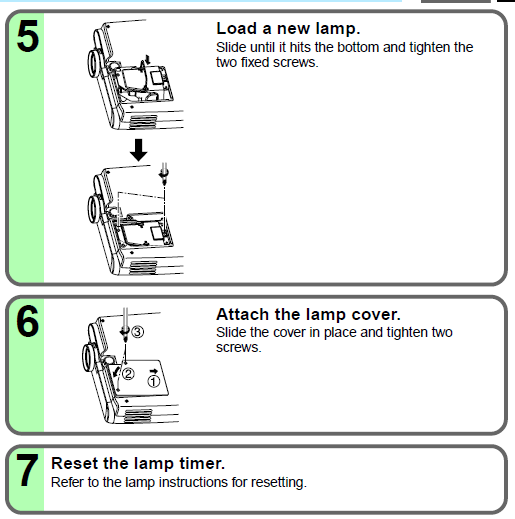

Lamp replacement

The TLPLB2 lamp will eventually begin to project

dark or dull pictures and finally will not light

up. (Lamp’s life length depends on the use

condition.) In such a case, replace the lamp

with new one.

CAUTION

• If you use the projector mounted on the

ceiling, ask the dealer to carry out the

maintenance such as cleaning or

replacement of the lamp.

• When replacing, always use lamp “TLPLB2”

(sold separately). For detail, refer to the

lamp instruction.

• If you have been using the projector, the

lamp will be very hot, and may cause burn

injuries. Wait for the lamp to cool (for longer

than 1 hour) before replacing it.

Notes

• The projector displays the total working time at

every 1,000 hours (only when plugged in and

turned on).

• The TLPLB2 lamp should be replaced if the total

working time exceeds about 2,000 hours.

• Attach the TLPLB2 lamp cover firmly after replacing the

lamp. If it is not set correctly, the power will not

turn on.
