TLPLMT70 projector lamp replacement

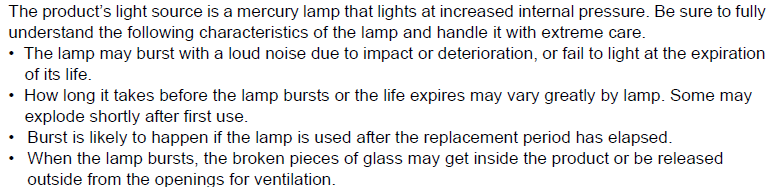

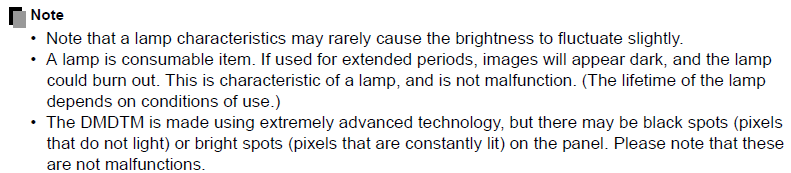

About lamp

Replacing the lamp

1. Turn off the power and unplug the power cord. Turn off all connected devices and disconnect all

other cables.

2. Loosen the screws on the lamp cover.

The lamp door is on the side of the projector.

3. Remove the lamp cover.

4. Loosen the screws that hold the TLPLMT70 lamp to the projector. It is strongly

recommended that you use a magnetic-head screwdriver to prevent

the screws from dropping inside the projector.

5. Slowly pull the lamp straight out of the projector.

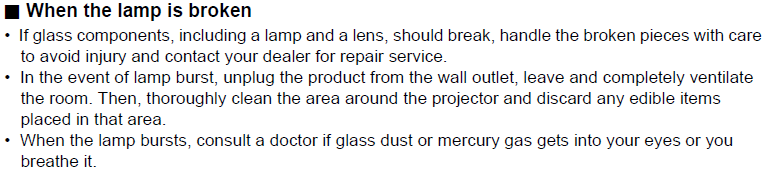

Pulling it too quickly may cause the lamp to break and scatter broken glass in

the projector. To reduce the risk of injuries to fingers and damage to internal

components, use caution when removing lamp glass that has shattered.

Do not place the lamp in locations where water might splash on it, where

children can reach it, near or above heat sources, or near flammable materials.

Do not insert your hands into the projector after the lamp is removed. Touching

the optical components inside the projector can cause color unevenness and distortion of the

projected images.

6. Insert a new TLPLMT70 lamp. Make sure it is securely in place.

7. Tighten the screws securing the lamp box.

8. Reinstall the lamp cover.

9. Tighten the screws on the lamp cover.

WARNING

• If the projector is mounted on the ceiling, it is recommended to use your Toshiba dealership

when the lamp has to be exchanged.

• When replacing, always use lamp “TLPLMT70” (sold separately).
