U3-130 lamp replacement and lifetime

The rated lamp life is about 1,000 hours. The rated lamp life is the average

life of the U3-130 lamps produced and tested (under the test conditions of our

company) for a long term, however, it may become shorter depending on

the conditions of usage.

After the lamp has been operating for 1000 hours or longer, the STATUS

indicator on the control panel will light and the “LAMP USAGE”icon

which shows hours of total U3-130 lamp usage will be displayed on the screen.

When this happens, turn off the unit and replace the lamp cartridge with a

new one. The unit will not turn on after 1100 hours. (It will go off if it is in

use.)

U3-130 Lamp cartridge replacement procedure

1 Disconnect the power cable.

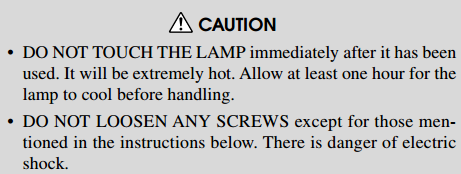

Wait at least one hour for the lamp to cool.

2 Turn the unit upside down carefully.

3 Loosen the lamp cover securing screw.

4 Remove the lamp cover.

5 Loosen the three lamp cartridge securing screws.

(This unit has a safety switch.)

6 Hold the handle then pull the lamp cartridge upward to remove

it.

7 Install the new lamp cartridge.

8 Secure the lamp cartridge with the three screws.

9 Replace the lamp cover and secure it with the securing screw.

10 Return the unit to the normal position, connect the power cable,

and turn on the unit.

Notes

• When the lamp usage time reaches 1100 hours, it becomes impossible

to switch on the power and menus are not displayed. In such a case,

see “If the unit doesn’t go on because lamp usage exceeds 1100

hours”on page 25.

• Obtain a replacement lamp cartridge at the store where the unit was

purchased. Please specify the following information when ordering a

replacement lamp cartridge:

Be sure to replace the lamp when the Status indicator comes on.

If you continue to use the lamp after 1000 hours of usage, the

lamp will turn off.
