VLT-EX240LP lamp replacement and time

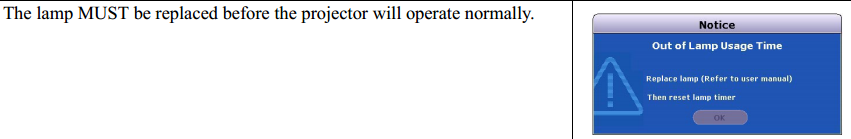

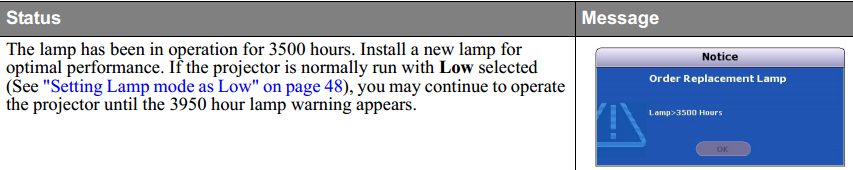

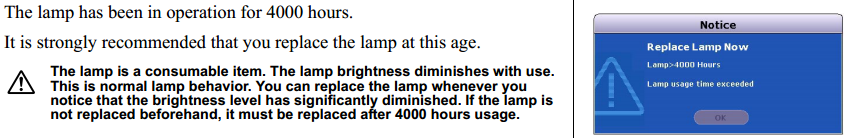

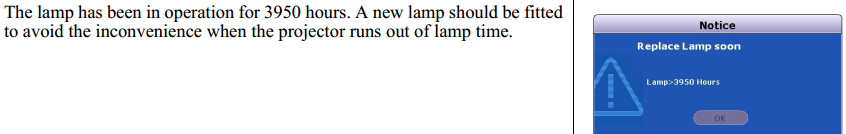

When the VLT-EX240LP lamp indicator lights up red or a message appears suggesting it is time to replace the lamp, please install a

new lamp or consult your dealer. An old lamp may cause a malfunction in the projector and in some instances the

lamp may explode.

• Be sure to replace the VLT-EX240LP lamp with a new lamp separately sold that is exclusive to this projector. Contact your dealer for

purchase of the lamp.

• To reduce the risk of electrical shock, always turn the projector off and disconnect the power cord before changing the

lamp.

• To reduce the risk of severe burns, allow the projector to cool for at least 45 minutes before replacing the lamp.

• To reduce the risk of injuries to fingers and damage to internal components, use caution when removing lamp glass that

has shattered into sharp pieces. To reduce the risk of injuries to fingers and/or compromising image quality by touching

the lens, do not touch the empty lamp compartment when the lamp is removed.

• Be sure to install the lamp securely. When the lamp isn’t installed properly, it won’t illuminate. Improper installation may

also result in fire.

• If the lamp should break, never shake the lamp box or hold it in front of your face after removing it. The glass fragments

may fall out and cause injury to your eyes.

1. Turn the power off and disconnect the projector from the wall

socket. If the lamp is hot, avoid burns by waiting for approximately

45 minutes until the lamp has cooled.

2. Unscrew the screws on the lamp cover.

3. Remove the lamp cover from the projector.

4. Remove and dispose of the lamp protection film.

5. Loosen the screw that secures the lamp.

6. Lift the handle so that it stands up. Use the handle to slowly pull the

lamp out of the projector.

7. As shown in the figure, lower the new VLT-EX240LP lamp into the lamp

compartment while aligning the lamp with the holes in the lamp

compartment. Make sure it fits in the projector.

8. Tighten the screw that secures the lamp.

9. Ensure the handle is fully laid flat and locked in place.

10. Place the lamp protection film supplied with the new lamp on the

lamp compartment.

11. As shown in the figure, replace the lamp cover on the projector.

12. Tighten the screws that secure the lamp cover.

13. Restart the projector.
