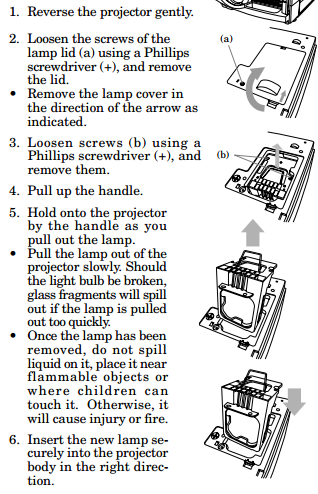

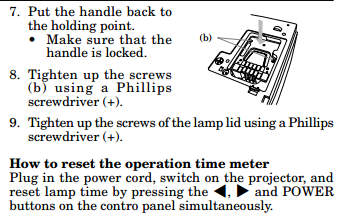

VLT-XL5950LP lamp replacement and time

The lamp is designed to project the image on the LCD panels. When the lamp no longer functions, replace it

with a new one.

Caution:

• Do not remove the VLT-XL5950LP lamp immediately after using the projector, you may get burned because of the

high temperature of the VLT-XL5950LP lamp.

• When you replace the lamp, press the power button to power off, then wait for 120 seconds in stand-by

mode to allow the lamp and LCD panels to cool. Turn off the main switch, unplug the power cord from

the outlet, and wait one hour so that the lamp is cooled to the touch.

• Do not remove the lamp except for replacement. Careless treatment can cause injury or fire.

• Do not touch the lamp element directly. It may break and cause you to injure or burn yourself.

• Be sure not to drop the VLT-XL5950LP lamp lid screw into the projector. Also be sure not to insert metal or any flammable

 objects, it may cause fire or electric shock. If any objects are inserted, please unplug and contact

your dealer.

• Install the lamp securely, failure may cause a fire.

• If the light bulb part breaks, some small glass fragments may fall out through the small cooling grill,

and sticks to the inside of projector or the lamp box. When taking the lamp out, make sure to turn over

the projector and hold the handle of the lamp box to avoid injury from the glass fragments.

• Never shake the lamp or hold it in front of your face after removing the lamp box.

The glass fragments may fall out and cause injuries to your eyes and so on.

Caution:

• Do not spill liquid on the lamp or place it near flammable objects or where

children can touch it. Otherwise, it could cause injury or fire.

• Be sure that the projector guide is firmly inserted

between the right and left lamp guides
