POA-LMP145 lamp warning

LAMP Indicator

This indicator is dim when the projector is turned on. And bright when the projector is in stand-by mode.

This Projector is equipped with 2 Projection Lamps to ensure brighter image and those lamps are controlled by

the Lamp Management Function. The Lamp Management Function detects the status of lamps and shows the

status on screen or on the LAMP 1/2 REPLACE indicators. This function also automatically controls the Lamp

Mode when any of lamps is out for the end of life or malfunctions.

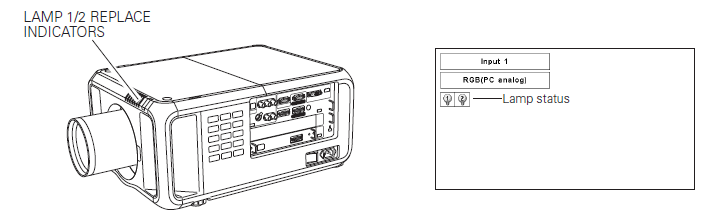

The LAMP 1/2 REPLACE indicators light orange when any of Projection Lamps is nearing its end, and flash

when any of them becomes out. Check the number of lamp on the Lamp Status Display or the LAMP 1/2

REPLACE indicators and replace the lamp.

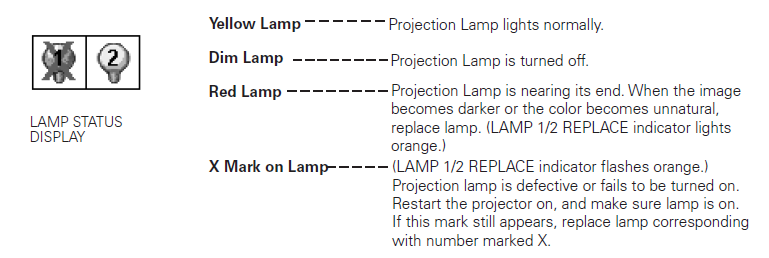

The Lamp Status Display appears on screen when the projector is turned on or the input position (input 1, input

2, Input 3 or input 4) is switched. This shows the status of each lamp as; ON, OFF, NEAR END, or OUT. Refer to

the following for each status.
